Vertical Carbonization Furnace

Saves Cooling Time / High Integrity / Greater Resilience And Stability

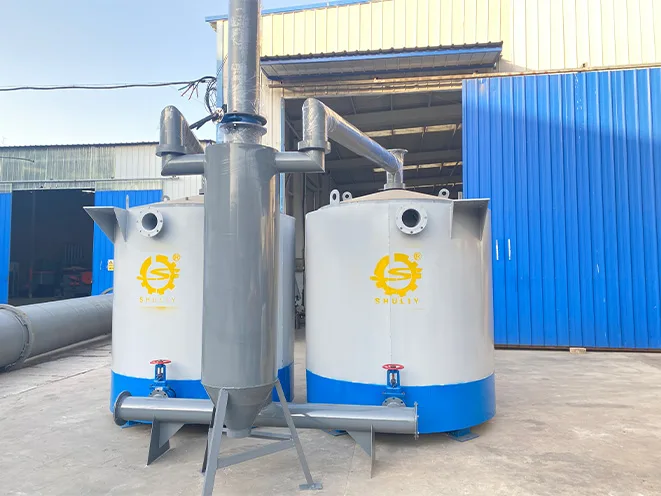

Introduction to the Vertical Carbonization Furnace

The vertical carbonization furnace consists of four main components: a lifting mechanism, an inner furnace, an outer furnace, and gas circulation piping.
It is suitable for the carbonization of various types of biomass, without being restricted by the size of the raw materials.
Carbonization Principle: Balanced-circulation carbonization utilizing a flow of hot gas.
Furnace Capacity: 600–700 kg/10h/cycle/furnace.
Advantages: Uniform heating, low energy consumption, wide applicability to various raw materials, higher yield, minimal footprint, simple operation, safety and environmental friendliness, and high production efficiency.

Components of a Vertical Carbonization Furnace

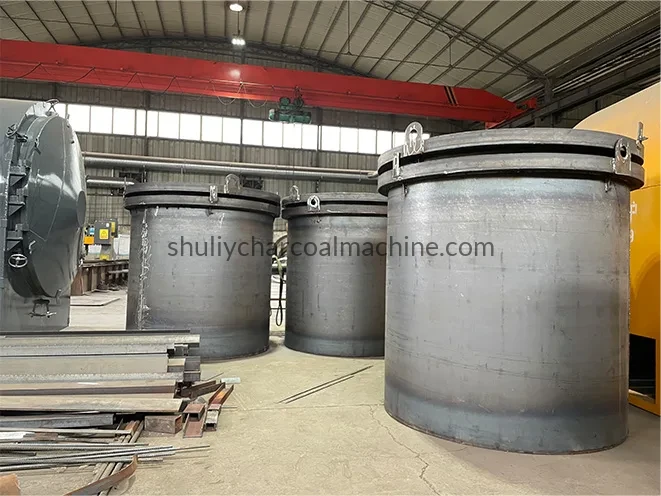

Vertical Carbonization Furnace Inner Liner

The inner chamber of a hoisting-type carbonization furnace serves as the core component enabling the equipment to achieve continuous operation and high-efficiency production. Utilizing a hoisting mechanism, the inner chamber can be directly lowered into the center of the furnace body for heating, thereby establishing a physical separation between the furnace body and the combustion chamber.

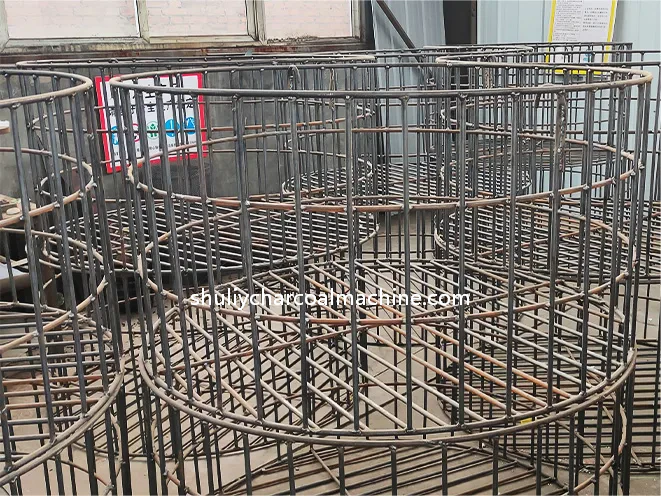

Suspended Carbonization Basket

This iron frame is designed to hold logs and is placed inside the inner chamber of the carbonization furnace. It facilitates easy removal after carbonization, thereby simplifying loading and unloading operations.
